UV-Rad-1525 series is e complete environement UV Preconditionning test, the execellence of our ageing equipment under UV light combined with a userfriendly professional electronic load. The electronic load is piloted through an IV Tracer software that offer a complete turnkey solution for the most exigent user.

Many of our realizations are built upon customers' requirements. The mechanical design of our systems allows us to build units of any size, either custom UV-Rad (UV ageing equipment).

Our large area UV-Rad equipment consists of arrays of Lumixo light engines. The complete machines are then built for the targeted illuminated area specified by the customer.

Thanks to the benefit of our Lumixo light engine, our light soakers and solar simulators are providing continuous and stable illumination.

Our basic systems typically meet the requirement for most testing standards.

All our machines are constructed to give easy access to the illuminating chamber. Furthermore, they come with a network interface to allow remote control of the installation.

The active area can be up to 4 x 4 m without additional charge of engineering.

Upper size of active area is available, but require additional anlysis.

Our vision

We offer complete, excellent products without hidden costs.

UV-Rad Units

The UV-Rad units are designed for UV precondioning test. They rely on thorough thermal engineering to maintain the samples at 60°C ±5°C to meet the standard testing conditions required by IEC 61215-2:2015 and IEC 61646:2008 norms. These equipments are designed to provide accelerated test under UV light.

The UV-Rad unit are the worldwide cheaper maintenance cost equipment for PV industry. You have the complete mastery of operating and maintenance costs thanks to our long life time of bulbs (up to 40'000 hours)

UV-Rad product is compliant with the tests list describe below

  • UV Preconditioning test test according to IEC 61215-2:2015 and IEC 61646:2008 norms
  • Case study: UV-Rad-1525

    This UV-Rad-1525 unit was designed to realize solar simulation on a 250 x 150 cm area. The system relies on 20 Lumixo light engines to obtain UV spectrum, uniformity (±1%), and stability (STI<0.5% and LTI<2%).

    UV-Rad-1525 Specifications

    Sample type: Mono and polycrystalline silicon PV panels
    Sample area: 2.5 x 1.5 m illuminated area
    Light intensity: 125 to 200 W/m2 in the wavelength range 280nm and 385nm. Total UV irradiation of 15kWh/m2, with at least 7.5 kWh/m2 in the wavelength band between 280nm and 320nm according IEC 61215-2:2015 and IEC 61646:2008.
    Light source: 20 Lumixo light engines
    Lamps lifetime: 20000 hours, serviceable
    Illumination non-uniformity: ±5% over 250 x 150 cm (Class A)
    Irradiance stability: <2% (Class A as per IEC 60904-9)
    UV light measurement: The system is equiped with a UV light sensor for the wavelength band 280-320nm and the band 320-385nm.
    Light engine cooling: Forced air ventilation
    Software: Lamp control and monitoring, sample holder temperature, light intensity
    Dimensions: 330 x 270 x 210 cm (sample holder closed)
    Mass: ~1500 kg without refrigerated circulator
    Structure: Anodized aluminum
    Electromagnetic compatibility: 2.45 GHz ISM Group 2, Class B Device (CISPR 11)
    RoHS conformity: Yes
    CE conformity: Yes, the components and the entire system conform with the CE regulations, the system is intended for industrial or laboratory use
    Safety: The system shutdown automatically the UV light sources to prevent any damage if a door is open during operation.



    Turn-key solution

    The computer, the UV-Rad, the electronic load and the I-V Measurement software is configured in our factory to ensure easy and fast installation on site.

    Electronic Load

    Coupling our solar simulator to a performant electronic load results in high quality measurements which most demanding users require nowadays.

    I-V measurement equipments is a professional system.

    Professional measurement system

    Our IV-System Pro is built around the well-known Kepco Bob bi-polar power supply and 3 Agilent DMMs to realize high quality data acquisition on current, voltage and reference cell. These proven instruments have all it takes to measure IV-curves (both dark and illuminated) on solar cells and modules.

    The current range is ±4A, where the voltage range is ±100V. Other ranges are available on request.

    When measuring solar cells it is very important to use a thermostated sample holder. Sample holders prevents heating up of the solar cell material.

    Another important parameter for solar cell metrology is the temperature. A high precision, class A Pt100 temperature sensor including computer interface (USB) is included with this Profesionnal IV System.

    Multiplexing of measurement can be made, this option add up to 60 two wires channels or 30 fours wires channels. The multiplexer is piloted across the I-V Tracer software for automatich measurements.

    I-V Measurement Software

    To ensure a correct powerful control of the equipment, the user-friendly Tracer IV-Curve software is required for each I-V Measurement system. The numerous functions range from doing basic I-V curve measuremens to most advanced analysis.

    Tracer is the all-in-one solution for the measurement and elaboration of IV-curves for solar cells and modules. Tracer is the core application that will help you to characterize your solar cells and modules. Many institutes and laboratories all over the world work hard on the development of new materials and technologies for photovoltaic applications. One of the main techniques to characterize these devices is to measure its IV curve. An IV curve can be taken from a solar cell by changing the voltage while measuring the light generated current.

    It seems logical for this measurement to use a standard power supply, because a power supply is normally used to provide a variable voltage and current. Unfortunately this would not work for solar cells. A solar cell generates current, so you will need to have a power supply that sinks this generated current instead of providing it. This can be done with a so called bi-polar power supply (or electronic load). This is a power supply that can sink and source current at both positive and negative voltages. There are many instruments on the market that can be used as a bi-polar power supply. Some of them are just bi-polar power supplies while others integrate measurement and control capabilities as well.

    Tracer will let you define and setup a system based on different instruments to measure your IV curves. You can add multiplexers to automatically measure multiple cells by using one single measurement system, implement contact checking and measure monitoring solar cells.

    Some examples of the supported hardware:

    • Keithley 2400 series
    • Keithley 2600 series
    • HACKL Electronic Loads
    • Kepco BOB
    • B&K Electronic Loads
    • Toellner loads info
    • EKO MP-180 Curve Tracer
    • National Instruments Data Acquisition
    • MODBUS / Ethernet controlled instruments

    Naturally Tracer natively supports the control of all Keithley 2400 and 2600 series source meters. These instruments have proven their strength over time for the measurement of solar cells. They range from 0.1fA – 20 Amperes. Tracer is developed with the latest Microsoft.NET Technology, which resulted in a modern ‘Microsoft Office' look and feel. A stable operation on the Microsoft Windows platform is guaranteed.

    I-V Software main window

    Preset configurations are available to ensure fast setting-up of the system..

    Tracer Configurator

    Before you start working with Tracer, you will have to configure your system. This is done by the Tracer Configurator. A tool that completely defines the setup you want to use. Tracer intends to support most instruments available on the market to use as an IV-curve measurement system. You can use for example a Kepco Bop bipolar power supply, add 2 Agilent 34410A DMMs to measure voltage and current, use a National Instruments DAQ card to control the Kepco Bob and get that unused Keithley 2000 DMM to measure a pt100 sensor for the solar cell temperature. This can all easily be deined in the configurator.


    • 2 x UVB sensors (range 280 - 320 nm and 320 - 385 nm) are included with UV-Rad series.

    Available options

    • Silicon Reference cell (open or shunted version)
    • GaAs Referenc cell
    • Solar cell IV-Converter (dedicated readout unit for reference cells).

    Complete environment included

    • 1 x UV-Rad-1525
    • 1 x Professional I-V measurement system
    • 1 x I-V Tracer software
    • 1 x UV light measurement system (280-320nm and 320-385nm)
    • 1 x CAN server to pilot the UV palsma lamps
    • 1 x PC computer under Windows 7 Pro

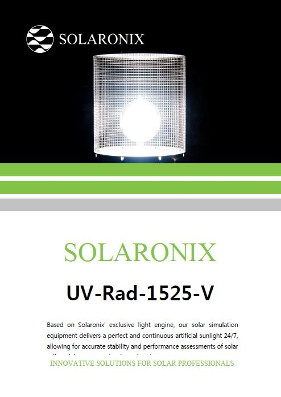

    Download the UV-Rad-1525-V brochure:




    (PDF, 1.6 Mo)

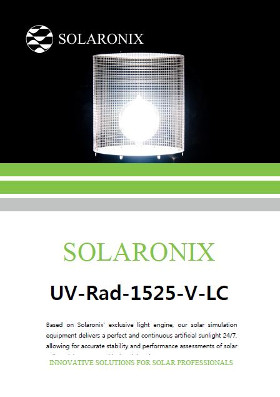

    Download the UV-Rad-1525-V-LC brochure:
